Docking monitors

You can dock monitors and readily navigate between them. You can dock a monitor to the top, bottom, left, or right of another monitor. Alternatively, you can dock a monitor on the top, bottom, left, or right side of the Contact Center Client window. You can dock monitors on top of one another, displaying them on overlapping tabbed panels to maximize real estate.

To dock a monitor on top of another monitor
  1. Right-click the title bar of an open monitor and select Dock.
  2. Repeat step 1 for all open monitors.

    Click the title bar of a monitor and drag the monitor on top of a second monitor placing your cursor in the center of the four-headed arrow that displays.

    See the following figure.

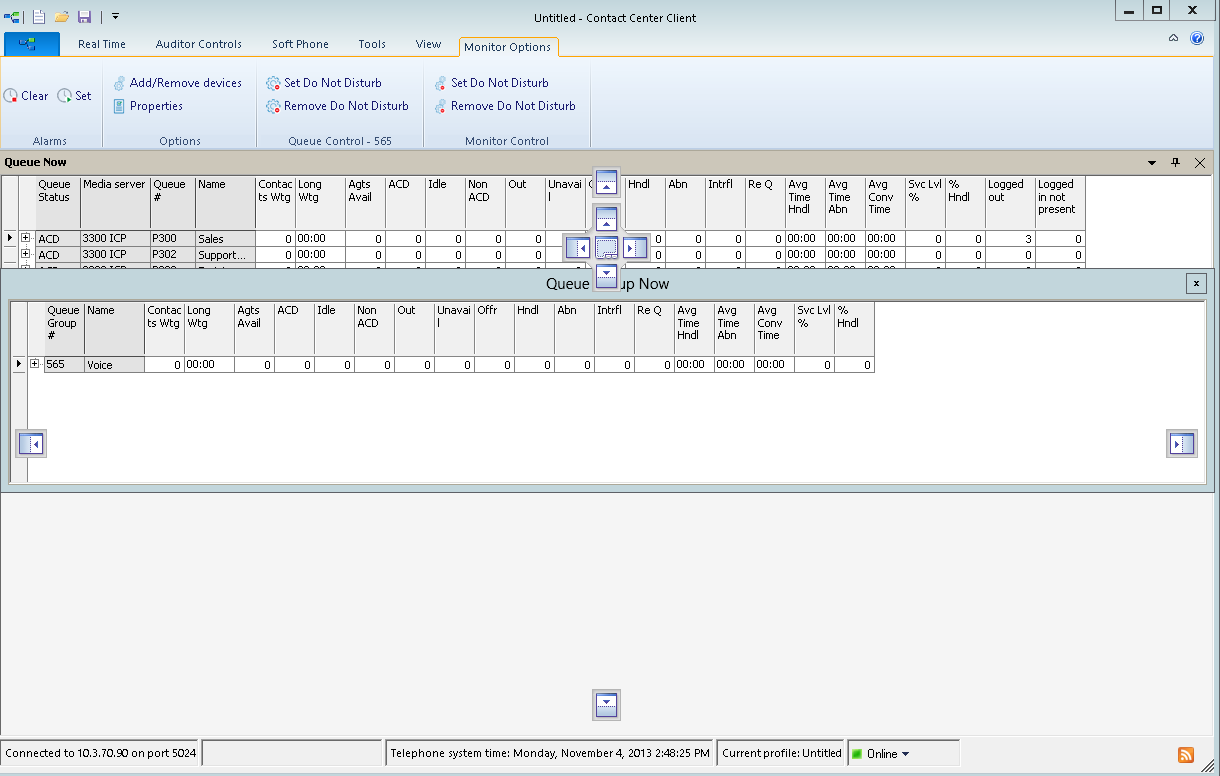

    Figure 1. Docking monitors


  3. Release the mouse button.

    Your monitors are displayed on overlapping tabbed panels.

    See the following figure.

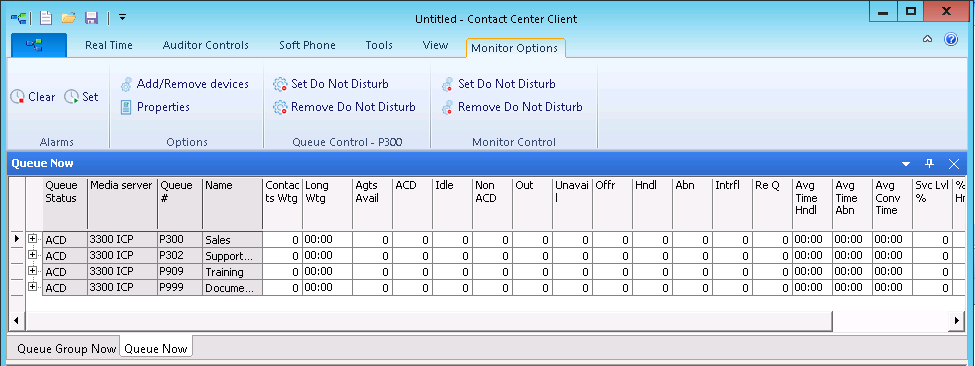

    Figure 2. Docked monitor
