Overhead Cable Chute System

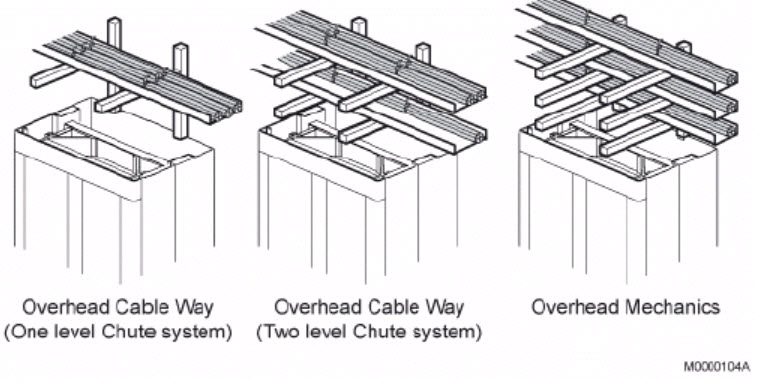

In an overhead cable chute system, all external cables are run above the cabinets. The cables can be run in an overhead cable way with chute systems in one level or more.

It is important to consider cable weight. In larger systems with many extensions the weight of the cables can increase significantly and may require extra support for the overhead cable chute system.

Make sure the ceiling is high enough for an appropriate installation of an overhead cable chute system above the cabinets. The BYB 501 cabinet height is 180 cm, and the standard server cabinet height is 200 cm. An overhead mechanics cabling installation can reach a height of 440 mm.
