Two BYB 501 Cabinets and One Server Cabinet

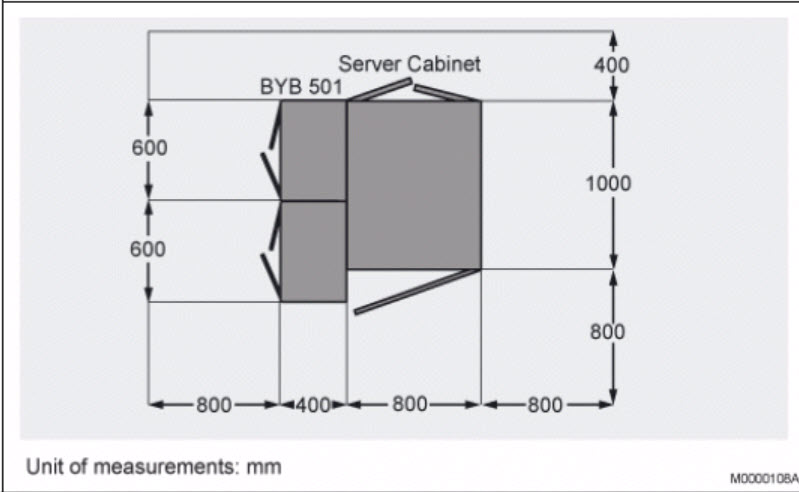

The figure below shows two BYB 501 cabinets (600 x 400 mm) and one bigger version of a standard server cabinet (800 mm x 1000 mm). The recommended site size is 2.8 m x 2.2 m, 2 Two BYB 501 Cabinets and One Standard Server Cabinet on page 6.

In this layout, the back of the BYB 501 cabinets are placed up against the side of the server cabinet.
