Database Node Design

The database nodes in MX-ONE can be deployed in co-located or stand-alone mode. The choice of using one or the other depend of the system size and the desired level of availability of the MX-ONE system.

The MX-ONE Service Nodes communicate with the database nodes via a driver and the database nodes communicate with each other using it owns protocol.

The figure below shows a high-level view of the communication between MX-ONE and database nodes and data- bases nodes.

Note: Database node requires unique IP address.

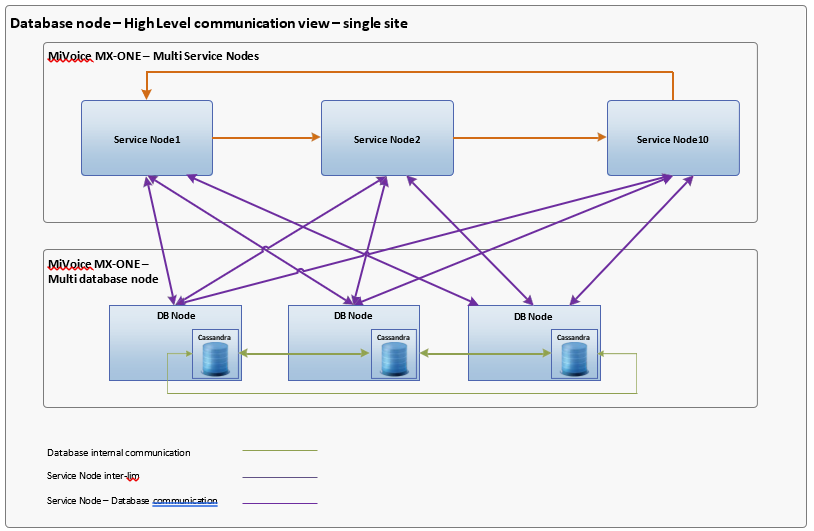

Figure 1. High level view of the database node communications

Note: In this figure, the MiVoice MX-ONE supports SCTP over IPSec, which requires separate configuration.
