FXO Configuration

Figure 1. FXO Configuration - Status
  1. Select POTS > FXO Configuration.

    This section is applicable If analogue trunks are used.

    Note:

    Only manual incoming is supported where there is no DID functionality. Only DTMF register signalling is supported for outgoing calls.

  2. Ensure that all FXO ports are up and idle.

Status

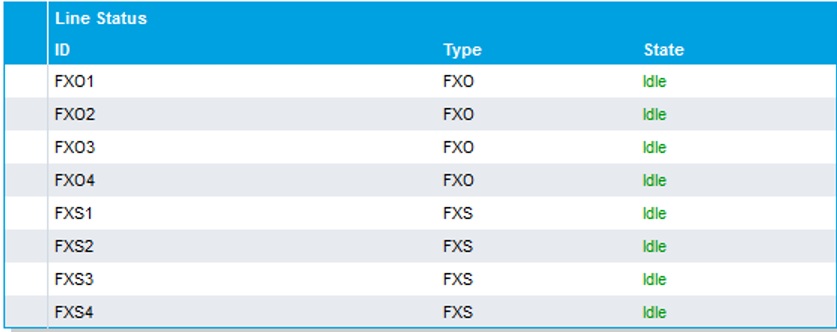

Figure 2. Status

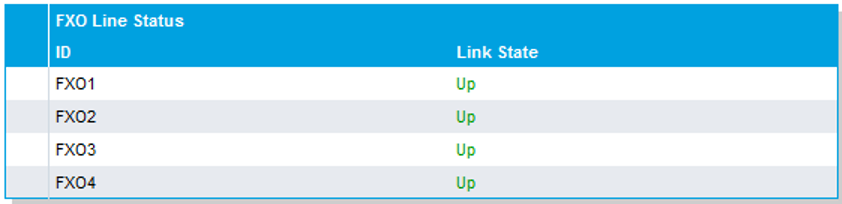

Figure 3. FXO Line Status
  1. Set specific FXO characteristics.

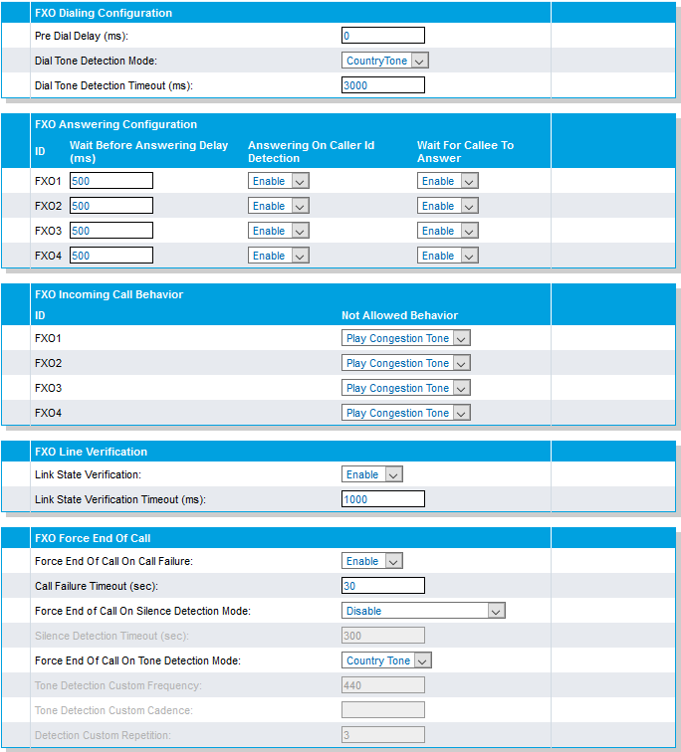

Figure 4. FXO Configuration

Select POTS > FXO Configuration.

In general, the default values are good but to speed up the answering, change the Wait Before Answering Delay (ms) from 8000 ms to 500 ms.

FXO Dialing Configuration

Figure 5. FXO Dialing Configuration
  1. Set the answering number for each FXO ports. This number must be a valid extension number, group number or operator number in the central MX-ONE.

Services

  1. Select Telephony > Services to set a specific market.

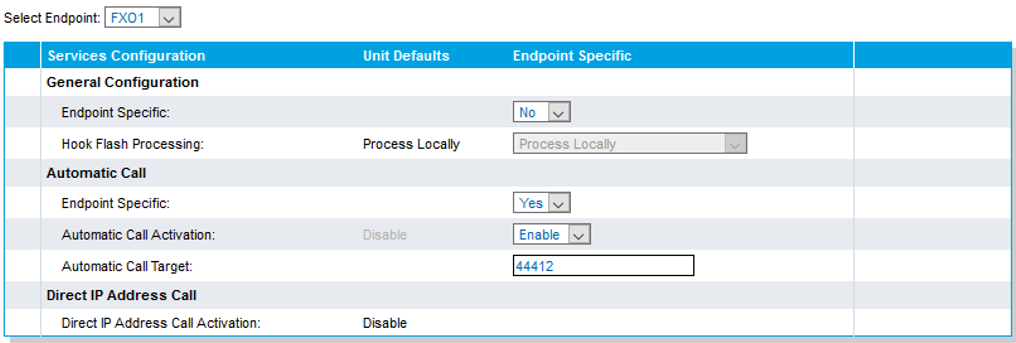

  2. Figure 6. Services

  3. Set the Automatic Call Target field.

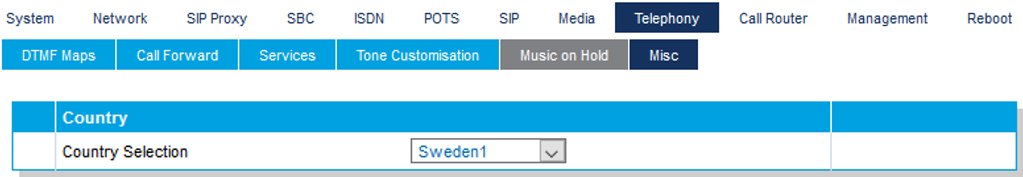

  4. Set the correct market (Country).

Parent topic: POTS
↑
