Route Config

Figure 1. Route Config screen
  1. Click Modify icon for index 1. This is used if the received B-number contains a full number. That is, more digits than the pure DID numbers.

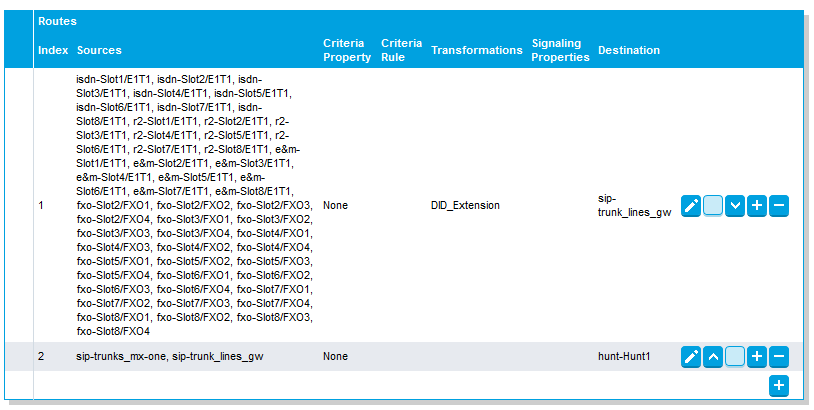

    Figure 2. Routes
  2. In the Transformations field, add a name for a transformation rule.

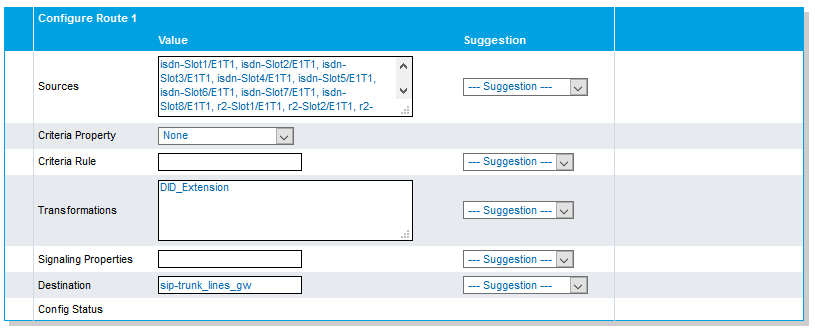

    Figure 3. Configure Route
  3. Click Save.
  4. Click Plus icon in the first Call Property Transformation and enter the same name as above.
  5. Use Called E164 for both Criteria Based On and Transformation Applies To fields.

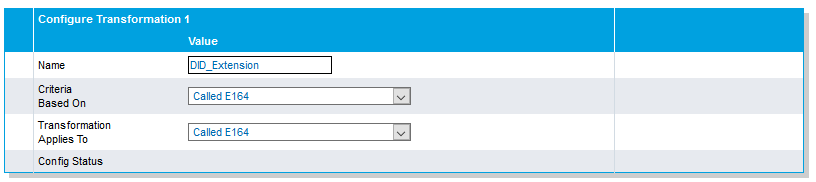

    Figure 4. Configure Transformation
  6. Click Plus icon in the second Call Property Transformation, and enter the same name as above.
  7. The Criteria Rule in this case is 443(111..)$ and the transformation rule is ‘\1.
  8. This means that if a B-number is received containing 59832104, then the 3 first digits (443) are removed before the call is sent to MX-ONE for further processing. (111..)$ means that the number can only be 5 digits starting with 111.

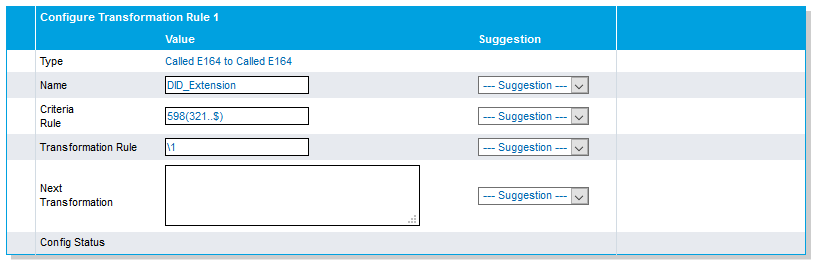

    Figure 5. Configure Transformation Rule 1

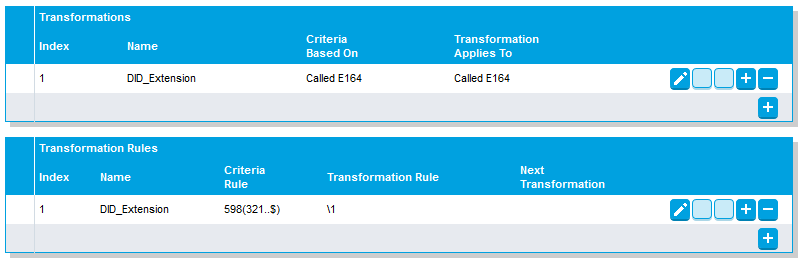

  9. Click Save or Save and Insert Rule. Now, the Call Property Transformations looks like this as shown below.
    Figure 6. Transformations

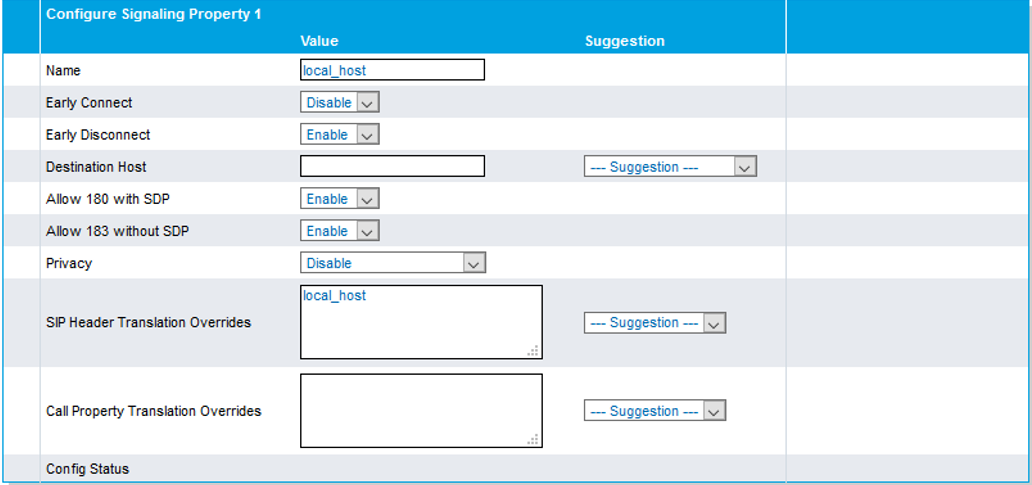

  10. Click Plus icon for the Signalling Properties, and enter the data shown below.
    Figure 7. Configure Signaling Property 1

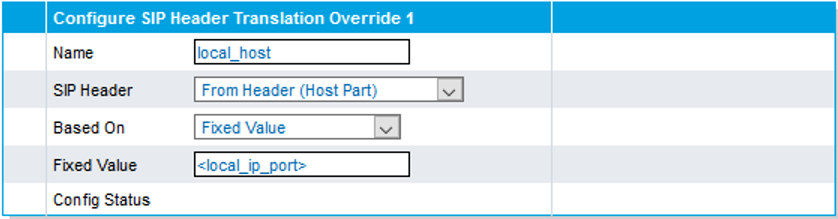

  11. Click Plus icon for the SIP Header Translation Overrides, and enter the following data as shown below.
    Figure 8. Configure SIP Header Translation Override 1

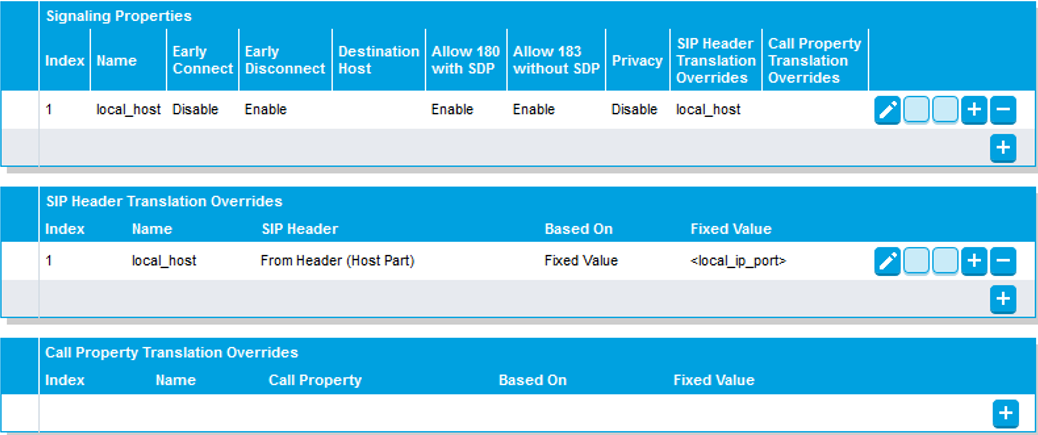

  12. Click Save Now the Signalling Properties looks like this as shown below.

  13. Click Save if the yellow indication on top of the page is on.
