Installing Battery Shelf
Use the following material set when installing the battery shelf:
|
NTM 144 266 Material set for battery shelf in 19-inch cabinet or frame |
|||
|---|---|---|---|
|
Pos. |
Title/Function |
Product Number |
Quantity |
|
B |
Battery shelf |
1 |
|
|
L |
Strapping belt |
1 |
|
|
K |
Set of 10-mm spacers for separating battery blocks |
1 |
|
|
A |
Captive nuts M6 |
SBM 173 060/03 |
4 |
|
C |
Screws M6X16 |
78/SBA 121 060/0160 |
4 |

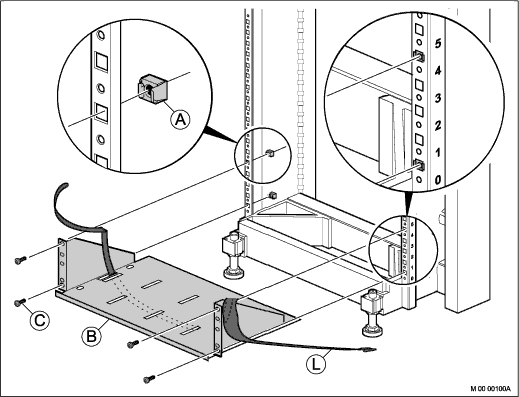

Figure 1. Installing the Battery Shelf
- Mount four captive nuts (A) (Installing Supporting Captive Nuts) in the cabinet according to the number positions shown, see Figure 1.
- Insert the strapping belt (L) through the battery shelf.
- Fasten the battery shelf (B) using four screws (C).
↑
