Installing the AC/DC Unit

The installation below is intended for the AC/DC unit 51305282. For specific information of the 51305282, see supplier Instruction Manual doc No. PM110_6500_00, and Quick Install Guide doc No. 110_6500_00-QR.

If any other type of AC/DC unit are installed, the same step below shall be taken.

Note: The AC/DC unit can have a shelf mounted below. This will ease the electrical connection. The shelf to be used is 86/BYB501. See Installing a Cabinet Shelf for more information.

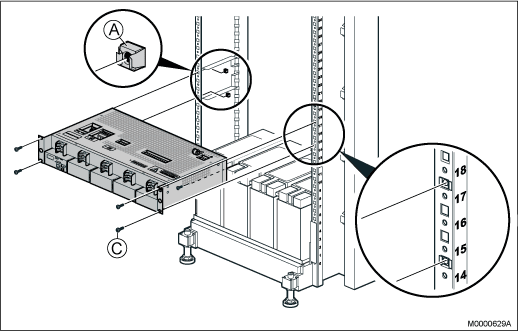

Figure 1. Installing AC/DC Unit
  1. If not already done, mount captive nuts (A) (see Installing Supporting Captive Nuts).
  2. Place the AC/DC unit on the mounted shelves (86/BYB501).
  3. Use the four screws (C) supplied with the mounting kit to fasten the AC/DC unit to the captive nuts in the cabinet. Do not tighten the screws, as they need to be opened again when connecting cables to the AC/DC unit.
  4. Connect the mains supply, distribution/load cables and battery cable acc to manufacturers instruction/manual.
    Note: Do not Power up the Unit in this stage.
  5. Fasten the warning label, energy hazard (SVB 131 75) as close as possible to the circuit breakers on the front of the AC/DC unit.
