Connecting Cables
Some cables are pre-connected at delivery, depending on equipment configuration ordered.
Use the figure and the table below to connect cables, or to verify that the cables are correctly connected. For cable connections to board positions
Always verify that the cable markings correspond before connecting cables.
For a list of cables, including source and destination for every cable
Do not cut extension cables shorter than 3.5 m. This might disturb the function in the system.

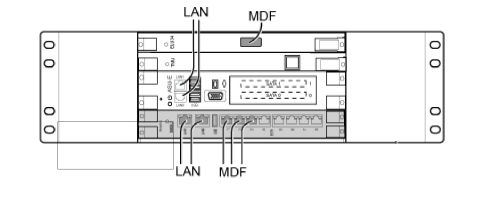

Figure 1. Cable Connections Configure Example

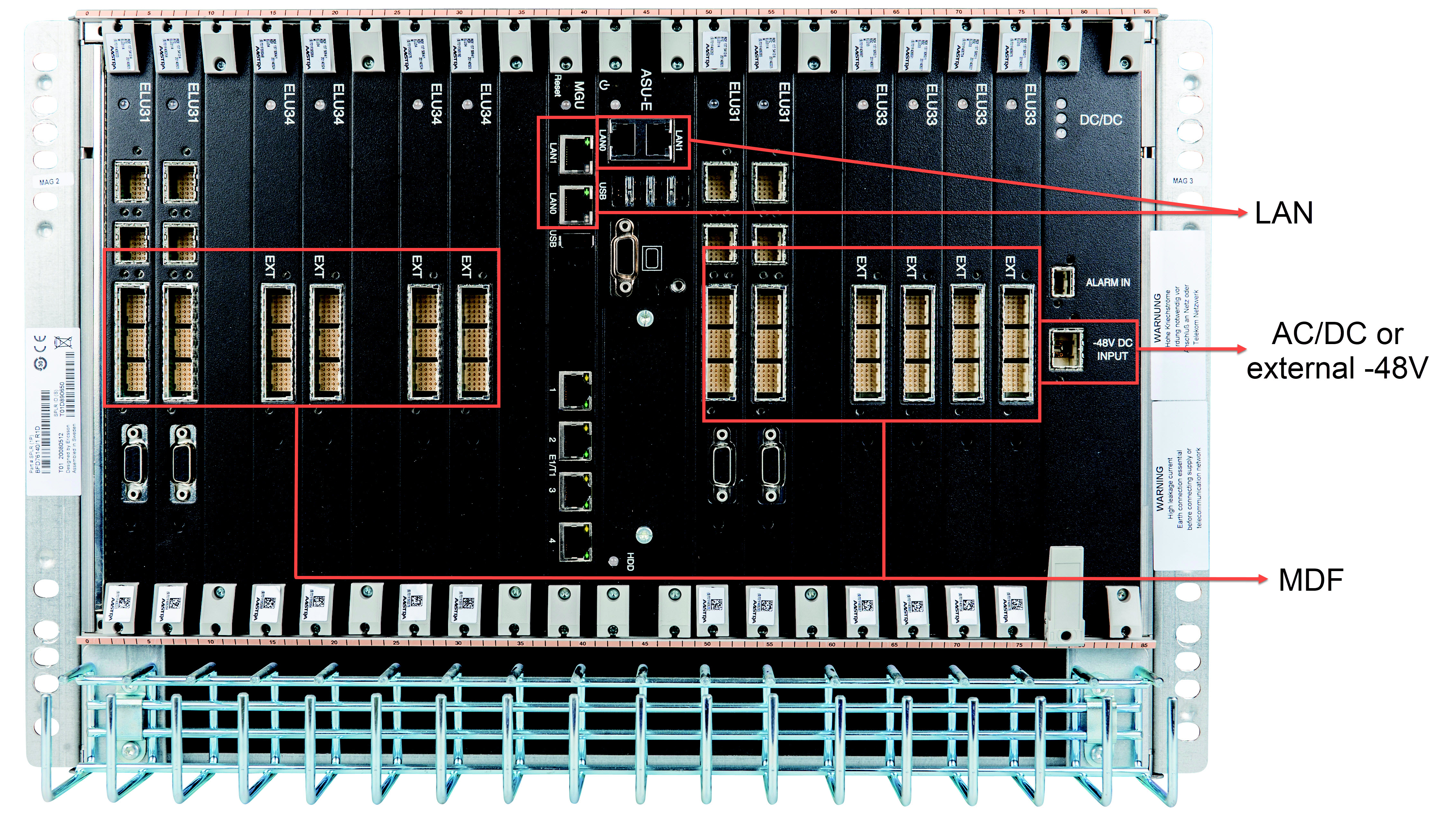

Figure 2. MX-ONE Lite Cabling Example
The MGU is connected to a server via the corporate LAN (that is, a Switch). This is also valid when multiple gateways are connected to a server.
↑
