ELU26, ELU31, ELU33, and from ELU34/1 to ELU34/6 Cable Structure

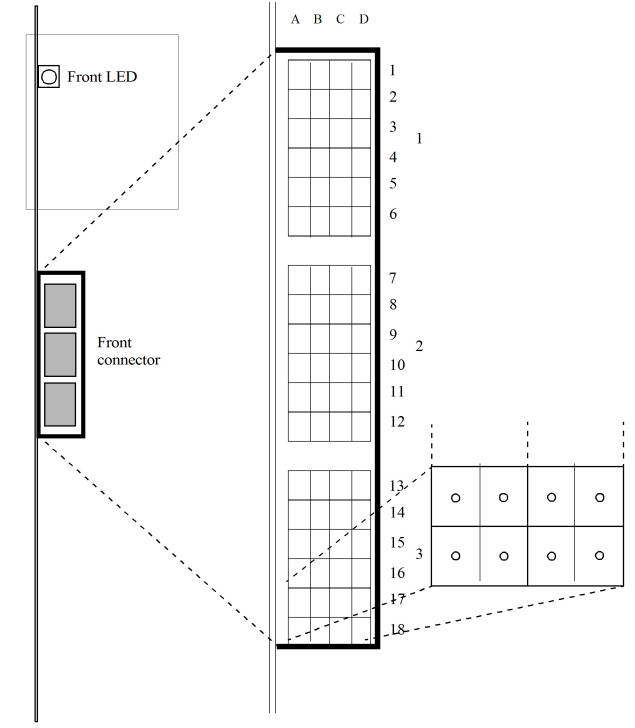

Figure 1. Front View

Note: ELU34 has to have individual 0 activated as the first individual and removed as the last individual, or else the communications with the board will fail.

Table 1. Color Coding in 32 Pair Cable for ELU26, ELU31, ELU33, and from ELU34/1 to ELU34/6
Pair	Core	Color	Bundle	Connector	Pair	Core	Color	Bundle	Connector
1	a	White	Blue	D18	21	a	White	Orange	D9
1	b	Blue		C18	21	b	Blue		C9
2	a	White		A17	22	a	White		A8
2	b	Orange		B17	22	b	Orange		B8
3	a	White		D17	23	a	White		D8
3	b	Green		C17	23	b	Green		C8
4	a	White		A16	24	a	White		D7
4	b	Brown		B16	24	b	Brown		C7

6	a	Red		D16	26	a	Red		A6
6	b	Blue		C16	26	b	Blue		B6
7	a	Red		A15	27	a	Red		D6
7	b	Orange		B15	27	b	Orange		C6
8	a	Red		D15	28	a	Red		A5
8	b	Green		C15	28	b	Green		B5
9	a	Red		A14	29	a	Red		D5
9	b	Brown		B14	29	b	Brown		C5

11	a	Black	Blue	D14	31	a	Black	Orange	A4
11	b	Blue		C14	31	b	Blue		B4
12	a	Black		D13	32	a	Black		D4
12	b	Orange		C13	32	b	Orange		C4
13	a	Black		D12	33	a	Black		A3
13	b	Green		C12	33	b	Green		B3
14	a	Black		A11	34	a	Black		D3
14	b	Brown		B11	34	b	Brown		C3

16	a	Yellow		D11	36	a	Yellow		A2
16	b	Blue		C11	36	b	Blue		B2
17	a	Yellow		A10	37	a	Yellow		D2
17	b	Orange		B10	37	b	Orange		C2
18	a	Yellow		D10	38	a	Yellow		A1
18	b	Green		C10	38	b	Green		B1
19	a	Yellow		A9	39	a	Yellow		D1
19	b	Brown		B9	39	b	Brown		C1

↑
