Labeling of Cables
Cables are marked with labels in both ends. The labels contain the following information:
-
Cable source
-
Cable destination
-
Server number
-
Cable number
-
Position (in boards or other devices) for cable connection
For a general explanation of the information in cable labels.

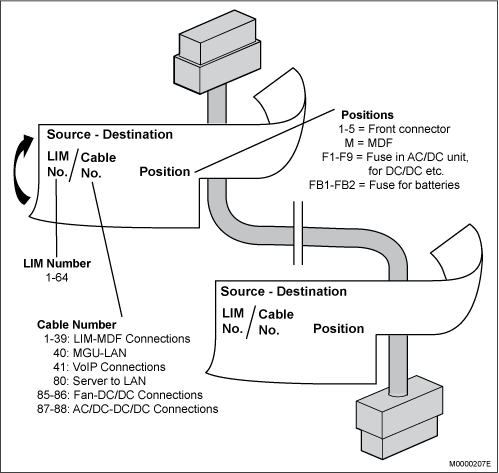

Figure 1. Labeling Cables

↑
