Collecting Data (Non-fixed Devices)

For non-fixed devices, the MX-ONE logic checks for the Geo-location, BSSID, MAC address, ELIN/CESID, and the IP address provided by the device. For BSSID, the MAC address, and IP address, additional information must be added in the MX-ONE’s Emergency Location database to complement the information received from the device. The system administrator needs to add additional information manually in the system.

Note:

Using the dect_rfp command, MX-ONE can be configured to provide the base station location information via the Location ID set up for Integrated DECT (legacy TDM DECT). The system administrator must add this information in the MX-ONE system.

Note:

For SIP phones using ELIN/CESID via LLDP_MED protocol, the ELIN/CESID configuration must be done in the LAN switches by the customer system administrator.

Note:

For SIP-DECT and IP-DECT, the ELIN/CESID configuration must be done in each base station by the customer system administrator.

Note:

For Wi-Fi phones, the customer system administrator must use the WinPDM tool to configure the device parameter Emergency call location method to send BSSID in the SIP Invite.

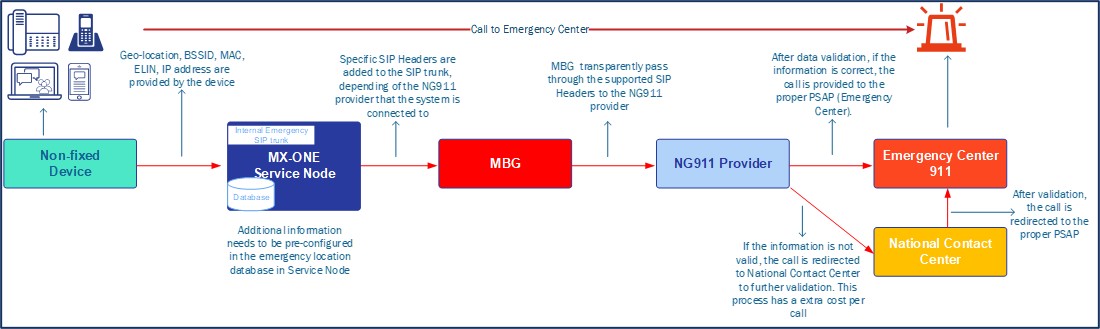

Figure 1. Non-Fixed Devices Call Flow

↑
