Scenario 1

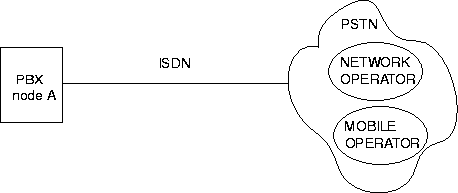

This section describes a scenario where one PBX system in one local area is connected to the PSTN and a public/mobile network.

Figure 1. Scenario 1

Prerequisites

An extension in node A has External follow-me or a Personal number list to a public/mobile network activated. Supplementary services to public destinations are not allowed.

Call Originator

Either a subscriber in the PSTN or an extension in node A.

Diverted/Deflected Party

Extension in node A.

Call Termination

Subscriber in the public/mobile network.

↑
