Erasure of FDT Data
General
Data erasure in the FDT tables is based on the field FRCT.
FDT is checked after a match is found in DNT1 or DNT2. FDT data relate to the erasure of DNT data and cannot be erased if referenced from DNT data.
Refer to Prerequisites.
Prerequisites
-

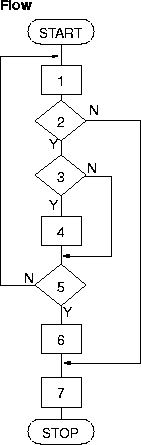

Execution
Erase FDT Table Data
| Measure/Question | Observation/Comment | ||
|---|---|---|---|
|
1 |
Key the command LCDDP to verify the existence of data. |
|
2 |
Is there any data in a table? |
||
3 |
Are there data to be erased in the table? |
||
4 |
Key the command LCDDE to erase data. |
||
5 |
Are all data that should be erased removed? |
||
6 |
Key the command LCDDP to verify the result. |
||
7 |
Proceed with the erasure of corresponding data in the other tables. |
Refer to other sections |
↑
