ANCD Communication
Initiation of the ANCD Communication Between Nodes
General
The communication channel will be initiated for the node. It is possible to define several choices to establish an information channel from one node to another node within the ANCD network.
Prerequisites
Information computer individual (IFCIND) and a node must be initiated.

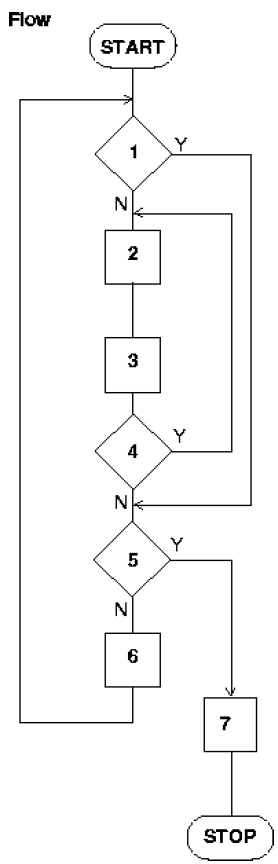

Execution
| Measure/Question | Observation/Comment | ||
|---|---|---|---|
|
1 |
Is communication for the node initiated? Use command NCCOP. |
The information computer indivdual(s) and the node must be initiated. |
2 |
Initiate communication between own ANCD node and other ANCD/Satellite nodes. Use command NCCOI. |
It is possible to define several choices to establish an information channel from one node to another in the ANCD network. |
|
3 |
Verify that the communication is initiated. Use command NCCOP. |
||
4 |
Are there any more ANCD/Satellite nodes to initiate communication with? |
NCCOI has to be executed for all remote nodes that own node has to communicate with. |
|
5 |
Is command NCCOI executed in all ANCD/Satellite nodes? |
||
6 |
Initiate communication in other node. |
NCCOI has to be executed in all nodes, to establish a bothway communication. |
|
7 |
Verify communication. Use command NCCTI. |
Communication initiated (IFCIND). *) |
