Groups in Active Directory

To reflect the local Linux groups defined for MX-ONE, the following groups must be defined in the AD.

Each group has the attributes listed in the following tables.

Note:

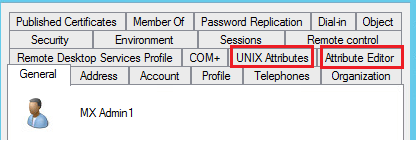

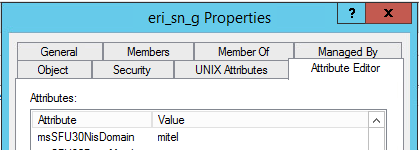

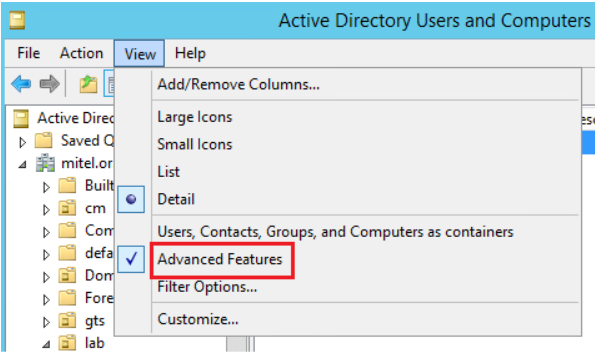

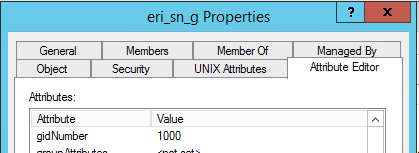

The field Unix Attributes tab is deprecated from Windows Server 2016 and onwards. On Windows Server 2008 R2, 2012 and 2012 R2, the Unix Attributes tab might be missing if Identity Management for UNIX Components is not installed. On those servers, the Active Directory Attribute can also be modified in Attribute Editor tab, which will be visible if Advanced Features option is selected in View menu.

The following figures show the modification that can be made as per above mentioned Note.

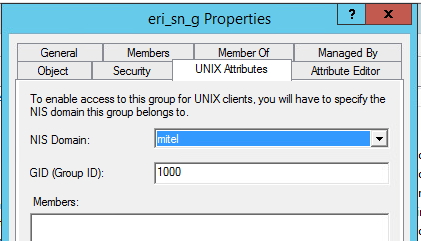

Table 1. Attribute for 'eri_sn_g'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1000

Table 2. Attribute for 'mxone_cmd_g'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1012

Table 3. Attribute for 'mxone_g'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1013

Table 4. Attribute for 'mxone_db_g'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1015

Table 5. Attribute for 'mxone_ms_g'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1016

Table 6. Attribute for 'mxone_om_g'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1014

Table 7. Attribute for 'sby_server_g'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1011

Table 8. Attribute for 'snlev0'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1003

Table 9. Attribute for 'snlev1'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value8q1
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1004

Table 10. Attribute for 'snlev2'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1005

Table 11. Attribute for 'snlev3'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1006

Table 12. Attribute for 'snlev4'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1007

Table 13. Attribute for 'snlev5'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1008

Table 14. Attribute for 'snlev6'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1009

Table 15. Attribute for 'snlev7'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	1010

Table 16. Attribute for 'named'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	44

Table 17. Attribute for 'dialout'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	16

Table 18. Attribute for 'lock'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	54

Table 19. Attribute for 'systemd-journal'
Field on the Unix Attributes Tab	Active Directory Attribute	Example Value
NIS Domain	msSFU30NisDomain	<domain name>
GID (Group ID)	gidNumber	493

↑
