The MX-ONE platform, often used in large enterprise or carrier environments, supports both IP-based and traditional telephony. Its modular architecture comprising Media Gateways, Application Servers, Session Border Controllers (SBC), and Manager Tools demands a carefully planned network placement and layered security model.

Core Network Design

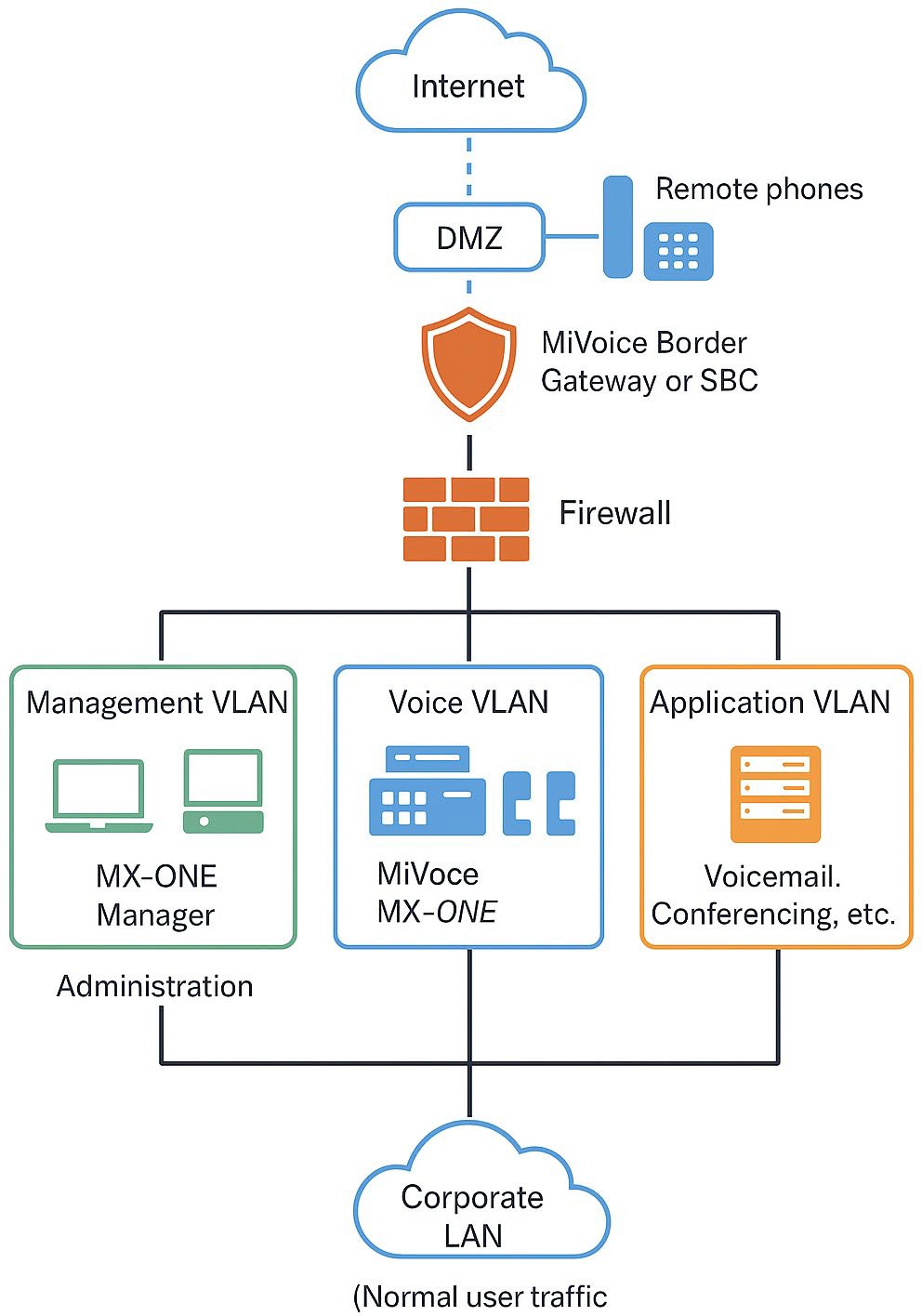

Split the deployment into logical zones using VLANs:

  • Voice VLAN (for IP phones and SIP trunks)
  • Management VLAN (for MX-ONE Manager, provisioning, SNMP, SSH)
  • Application VLAN (for voicemail, conferencing, call recording)
  • Corporate LAN (for normal user traffic)

Deploy dedicated Layer 3 segmentation and inter-VLAN firewalls to control cross-zone traffic.

DMZ Use (for External SIP Trunks or Remote Phones)

Deploy MiVoice Border Gateway (MBG) or third-party SBCs in the DMZ to handle:

  • Remote extensions (Teleworker service)
  • External SIP trunks
  • WebRTC clients

PBX core (MX-ONE Service Node and Media Gateway) remains inside the trusted internal network.

IP Phone Placement

IP phones reside in the Voice VLAN, which:

  • Is isolated from user LAN
  • Is prioritized via QoS (DiffServ EF or 46) on all switches and routers

Virtual Deployments

For MX-ONE on VMware, Nutanix or Proxmox VE:

  • Isolate virtual network interfaces per role (management, voice, public access)
  • Use hardened hypervisor configurations and limit console access

Recommended Security Settings

Firewall Rules & Network Control
  • Permit SIP, H.248, and RTP only between:
    • MBG/SBC ↔ MX-ONE Media Gateway
    • IP phones ↔ MX-ONE
  • Only allow management ports (HTTPS, SSH) from trusted IT admin subnets
  • Disable unused services on all nodes, including legacy TFTP if not required
Authentication & User Access
  • Use Active Directory for centralized account control
  • Enforce strong passwords for:
    • Admin accounts on MX-ONE Manager
    • SIP extension accounts (randomized credentials, ideally 12+ characters)
  • Use Role-Based Access Control (RBAC) in the MX-ONE Manager Tool Suite
Encryption
  • TLS Encryption:
  • Enable TLS for SIP signaling (SIP-TLS or SIPS)
  • Use valid CA-signed certificates or an internal PKI
  • SRTP:
    • Enable SRTP for all supported phones and trunks
    • Ensure end-to-end encryption from device to SBC or peer
  • HTTPS for management interfaces only; disable HTTP
Abuse & Intrusion Prevention
  • Enable Intrusion Detection in MBG or SBC
  • Rate-limit SIP registration attempts
  • Geo-block untrusted countries if remote phones are used
  • Fail2ban or equivalent on Linux-based manager nodes
  • Set lockout thresholds for repeated failed login attempts

Monitoring, Logging & Compliance

  • Enable SNMP and integrate with centralized monitoring (Zabbix, Nagios, or Mitel Performance Analytics)
  • Forward logs to Syslog or SIEM for audit purposes:
    • Call records (CDR)

    • Login attempts

    • Configuration changes

  • Use MX-ONE Provisioning Manager for audit tracking of user/device modifications
  • Retain logs for compliance per GDPR, HIPAA, or country-specific retention laws

Backup, Patching & Redundancy

  • Schedule automated backups of:
    • MX-ONE configuration
    • Voicemail and call logs (if using Mitel CMG or MiCAM)
  • Store backups off-system and validate restoration quarterly
  • Keep all components Manager, Service Node, Media Gateways patched per Mitel's bulletins
  • Enable clustering and redundancy:
    • Dual-node configurations
    • Hot standby for critical services (e.g., voice mail, SIP trunking)

Emergency Services & Regulatory Compliance

  • Configure accurate location data (ELIN/ERL) for IP phones to ensure:
    • Proper emergency call routing (e.g., 112, 911)

    • Support for E911 (via MBG or SIP trunk provider)

  • Comply with:
    • Lawful Intercept (if required)
    • Call detail logging and retention policies
