Mounting Earthing Bar
| 15/BYB 501 Material set for earthing |
|||
|---|---|---|---|
| Pos. |
Title/Function |
Product Number |
Quantity |
| B |
EARTHING BAR |
SXA 210 033/1 |
2 |
| A |
BAR NUT (only for old cabinet) |
SXA 123 0687/2 |
4 |
| C |
SCREW M8X16 (only for old cabinet) |
03/SBA 178 080/0160 |
8 |
| C |
SCREW M8X25 |
78/SBA 178 080/0250 |
8 |
| CONTACT WASHER (to be placed between earthing bar and cabinet) |
SCL 100 165/84 |
8 |
|
To mount the set of 15/BYB 501 in a side-by-side cabinet setup, perform the following steps:

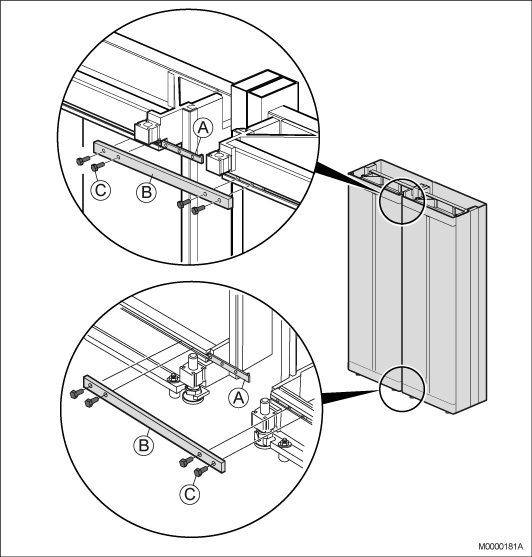

Figure 1. Mounting the Earth Bar
- Install the earthing bars (B) with screws (C) and, a washer between the earth bar and the cabinet, see Figure :Mounting the Earth Bar on page 10. (Bar nut (A) is not used in some cabinet) .
- Install the earth bars between each cabinet at the top and bottom.
- Verify that the torque of all mounting screws is set to 20 +/-1 Nm.
↑
