ELU34

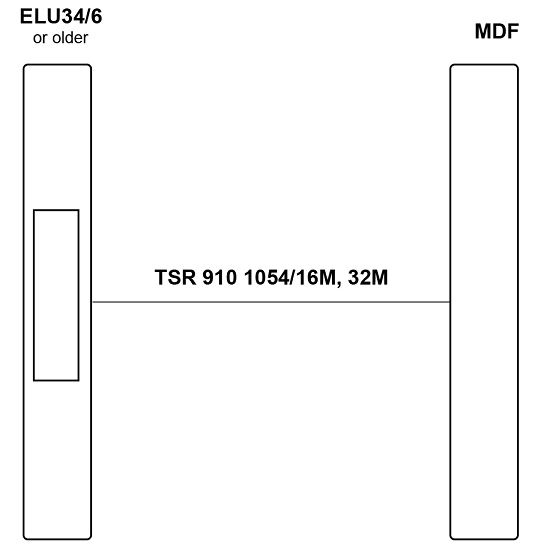

The following figure depicts the connection between ELU34/6 (or older) board and MDF.
Figure 1. From ELU34/1 to ELU 34/6 Wire Connection

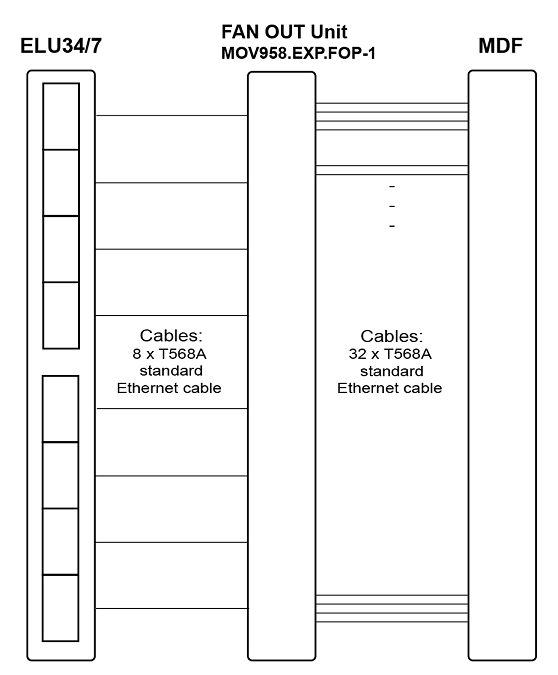

The following figure depicts the connection between ELU34/7 board and MDF.
Figure 2. ELU34/7 Wire Connection
↑
