MiVoice MX-ONE Classic with Power Unit

Alarms from FAN_2 units and alarms from power supply, can be routed to the MX-ONE system via the ALARM inlet on either the DC/DC board if a MX-ONE Classic (7U-chassis) is used, or in the rear of a MX-ONE Lite (3U-chassis) if this is used.

The Supervision Extension port must be terminated with alarm plug SXK 106 2097/1 on the FAN_2 unit.

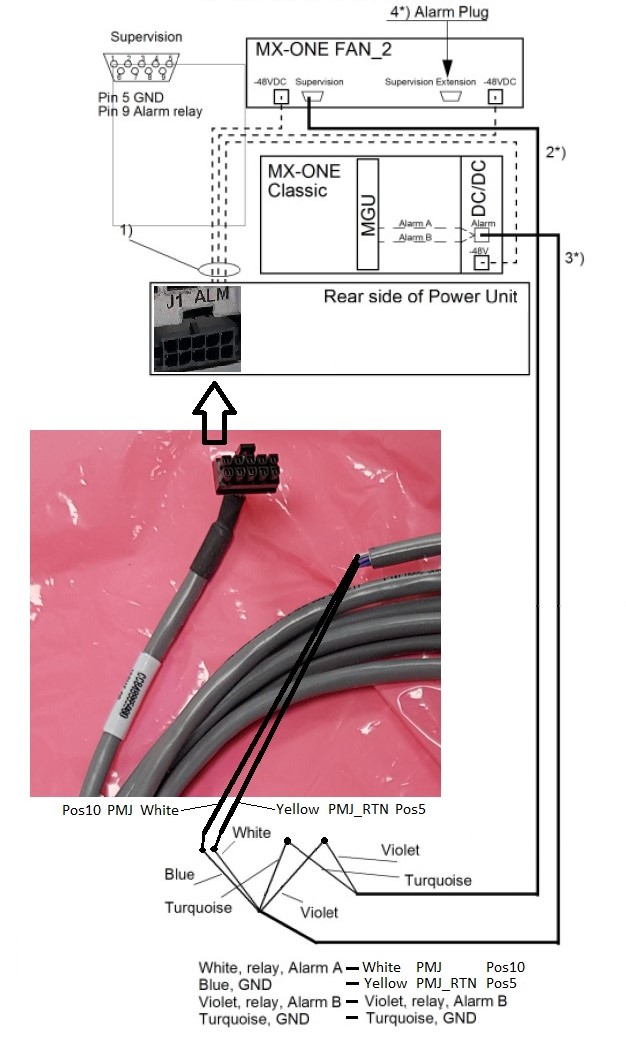

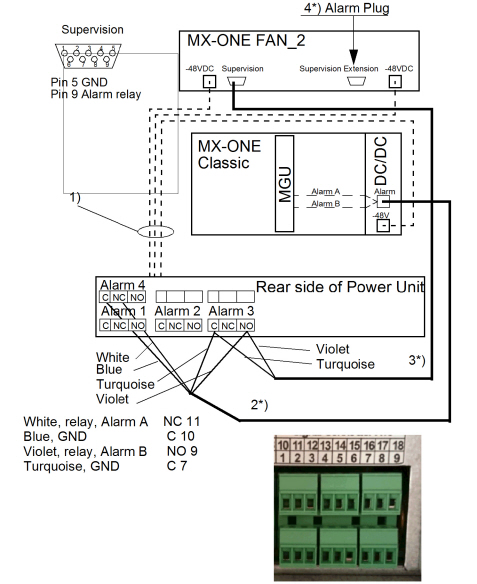

Figure 1. Power and Fan alarm in Classic chassis

Figure 2. ABB Power Supply Unit

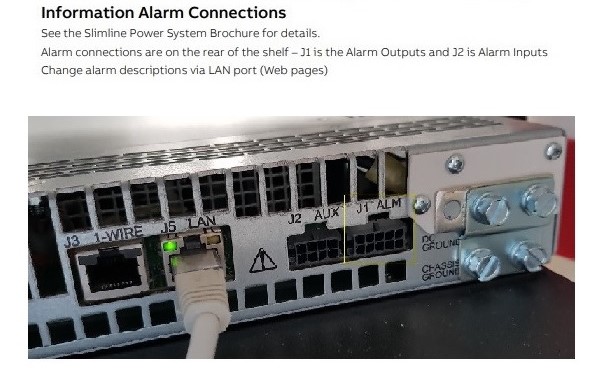

Figure 3. Information Alarm Connections

The following connections are used:

Power cable 53105286 (87) or Power splitter cable 50006938 (37) ( Note: If only one (1) Power cable 53105286 (87) are used, the FAN_2 alarm will be activated)
* Alarm cable TSR 902 0277/2000 (free end on power unit side)
* FAN_2 Alarm cable TSR 902 0274/2200 (free end on power unit side)
* Alarm plug SXK 106 2097/1

* Optional cables and plug. Needed when alarm handling is required.

For details about the power connections, see Supplier User Manual.

MX-ONE Battery Mounting Set

Table 1. Battery Mounting Set
MX-ONE Battery Mounting Set
Mounting Set Types	Existing (Mitel P/N)	ABB Description
Battery mounting set	NTM144265	MX HW Mounting set BKB201003 Note: For MX-ONE 31A and 62A, 4x12V batteries: cable from PSU to battery, not included.
Screws for rack mounting the ABB PSU	NTM144264	Mounting set 4+4 screw+nut
Shelf for 4x12V batteries (31A or 62A)	NTM144266	MX material set for battery shelf (Includes 4 screws/nuts for rack mount, includes 3 units of 10mm distances for the batteries).

↑
