Mivoice MX-ONE SNMP Agent Introduction

MX-ONE is a device running on IP networks supports SNMP that means the MX-ONE Service Node is supervised by a SNMP network management station or network node manager.

MX-ONE Service Node can be configured to send alarm notifications by SNMP traps or optionally by e-mail or text messaging using Short Messaging Service (SMS).

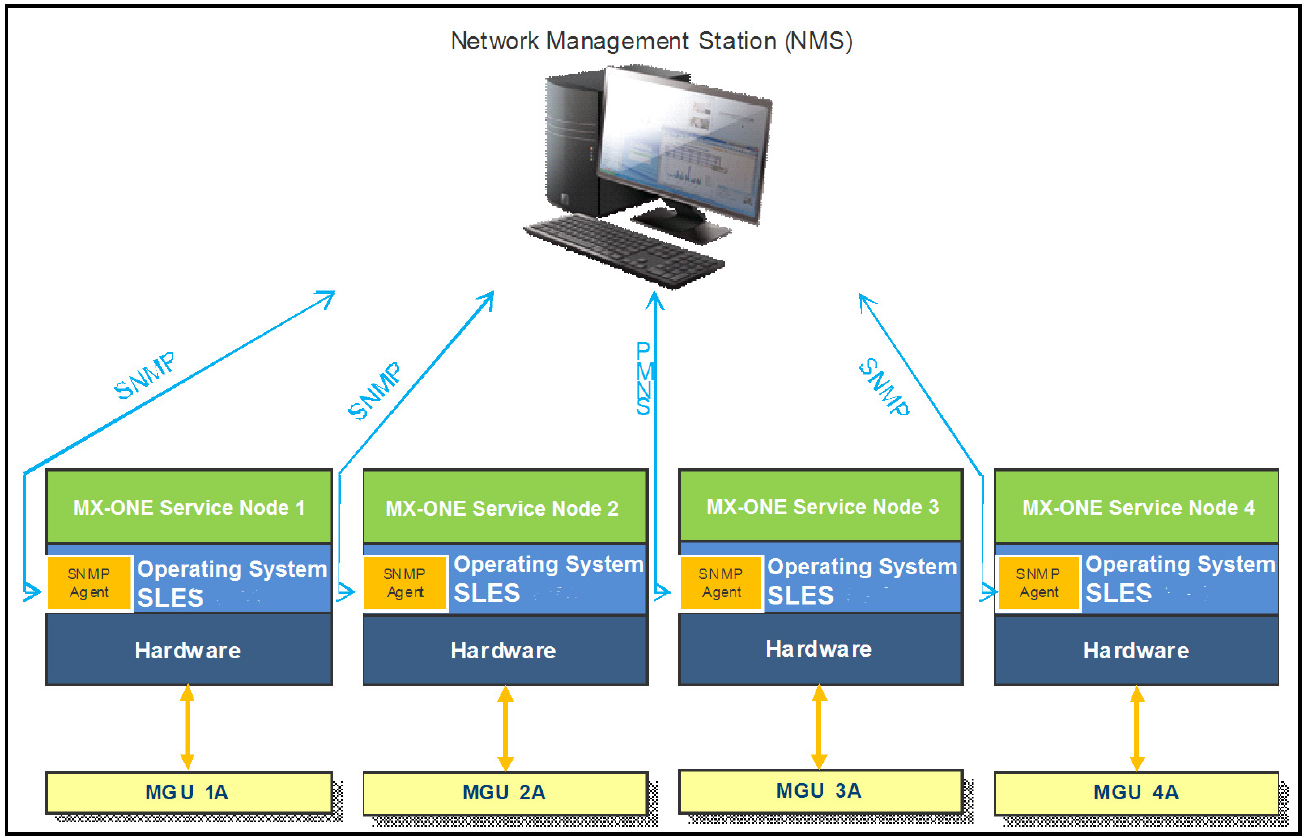

The SNMP implementation in the MX-ONE Service Node is based on net-snmp. Net-snmp is one of the packages installed along with the operating system on the MX-ONE Service Node. During installation, the net-snmp daemon is configured to use the AGENT_X protocol. The program AALSNMP (Mitel MIB) is part of the telephony system and communicates with the SNMP daemon via the AGENT_X protocol. The SNMP daemon (snmpd) is installed in each server (node) of the MX-ONE. Consequently, the network management station needs to get traps from all nodes individually in order to get the complete system view.
