Trap

The agent sends Traps when a status change occurs in the monitored device. The Trap is received by Network Management Station (NMS) that can present the information in a graphical format, if properly configured, as shown in the figure below.

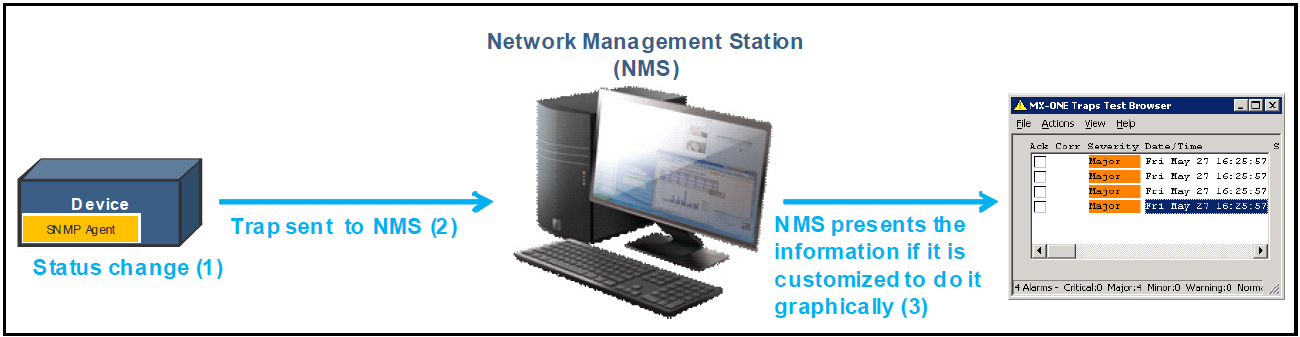

Figure 1. Trap
