Configuring the MiVoice MX-ONE CSTA Server

The MiVoice MX-ONE and CloudLink use the CSTA (Computer Supported Telecommunications Application) protocol for all call control / CTI signaling between the two products via the CloudLink Gateway.

As with many other integrations, MX-ONE must have the CSTA Server function enabled to allow the CloudLink Gateway to connect via the protocol.

This is activated on MX-ONE via the Service Node Manager tool, accessed via Provisioning Manager via the MX-ONE subsystem.

  1. In the Services/CSTA Server menu, choose the CSTA Server option on the left.

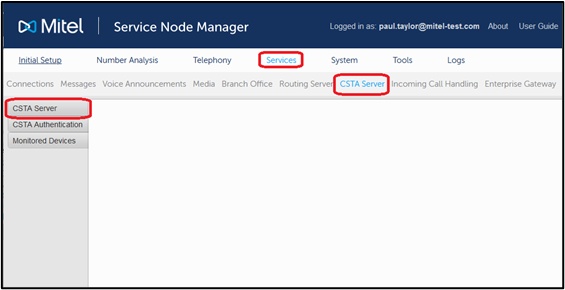

    Access the CSTA Server page

  2. Click the Add button.

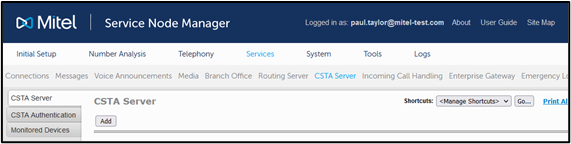

    Add the CSTA Server

  3. Choose the MX-ONE Server (LIM) that will communicate with the CloudLink Gateway. The options shown in the following image are the default:

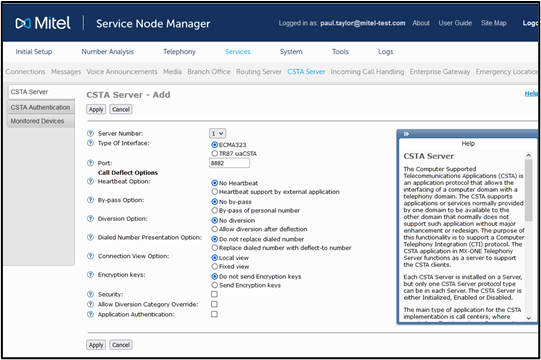

    CSTA Server default options

If the CSTA server is already being used on MX-ONE to communicate with a different additional platform (such as MiContact Center Enterprise) using the same CSTA settings required for CloudLink Gateway but a different port number, then that port number should be used.

The port number chosen in Service Node Manager is then specified during the CloudLink Gateway configuration in Mitel Administration.
