Installing MX-ONE 1U Chassis

This section describes how to install the 1U chassis, MX-ONE 1U in the BYB 501 cabinet. Additional 1U chassis can be installed directly above the first one in the same way as the first 1U chassis.

Use the following mounting set to install the MX-ONE 1U chassis in the cabinet.

Table 1. Mounting Set for 1U chassis, MX-ONE Service Node

NTM 144 264 Mounting set

Pos

Title/Function

Product Number

Quantity

C

SCREW M 6X16

78/SBA 121 060/0160

4

A

CAPTIVE NUT M6

SBM 173 060/03

4

To install the 1U chassis in the cabinet, perform the following steps:

Note: Power inlets are positioned on rear side of the chassis. Secure that rear side is accessible after mounting, or insert the 48V and/or the 115/230V Mains cable before mounting in the rack. Fasten all power cables by Cable tie to avoid disconnection. See Figure 2.
Note: This equipment have to be connected to protective ground. Connect a grounding cable to the bracket at the earthing point, close to the earthing symbol located at the rear side of the chassis. See Figure 2.

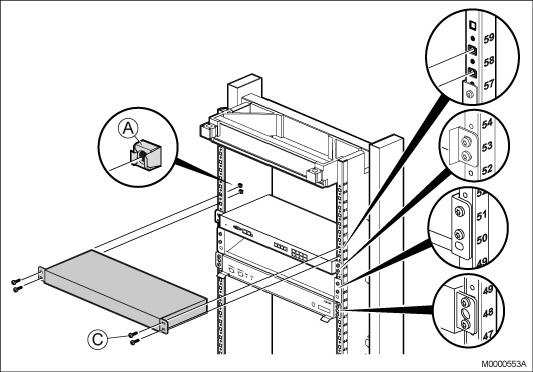

Figure 1. Installing MX-ONE 1U chassis
  1. Mount four captive nuts (A) (see Installing Supporting Captive Nuts) according to the number positions shown in Figure 1.
  2. Fasten the 1U chassis to the four captive nuts in the cabinet, using the four screws (C).
  3. If required, install additional 1U chassis directly above the first one in the next available cabinet position. No gap is needed between the units.
Note: Do not obstruct the cooling air flow, which goes from right to left in the MX-ONE Lite (3U) and MX-ONE 1U subrack.

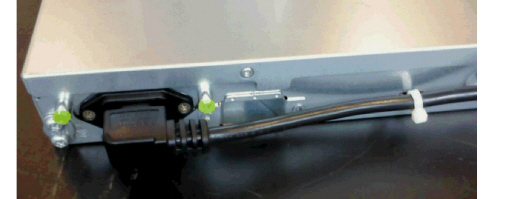

Figure 2. Secure Main cables
Parent topic: Installing Cabinet
↑
