Mounting the Front Air Plate in Subrack A

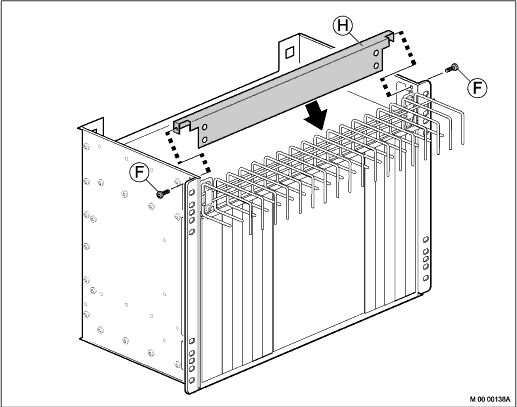

Figure 1. Mounting the Front Air Plate in Subrack A

To prepare subrack A for installation in the cabinet, first mount front and rear air plates in the subrack as follows:

1. Place subrack A in an upside-down position on a steady work surface.
2. Insert the front air plate (H) to the slot against the cable chute.
3. Fasten the front air plate to the subrack by using two screws (F).

Parts from this mounting set are used at a later installation stage, leave the remaining parts at hand.
