RODAI
Route data initiate

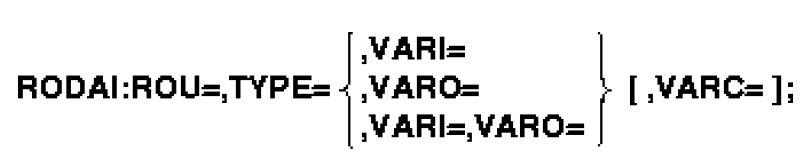

Format
|
|
ROU = |
Route number. |
TYPE = |
Type of signalling diagram, that is, the TL function block that handles the TL unit in the equipment position to use. For value, see parameter description for BRDID, TYPE, UNIT. |
VARC = |
Signal diagram variations common for incoming and outgoing traffic. Can be omitted only if the relevant TL function block permits this. |
VARI = |
Signal diagram variations for incoming traffic. Must be stated if the route is defined for incoming traffic. |
VARO = |
Signal diagram variations for outgoing traffic. Must be stated if the route is defined for outgoing traffic. |
Function
The command is used to initiate more categories for an existing route. The route must have been initiated previously with command ROCAI, see ROCAI. It is necessary to key the command RODAI before the route is completely initiated. See RODAI. It is not possible to initiate lines before this command has been keyed also.
If no lines are initiated it is possible to type the command once again in order to change some categories.
Note: Parameters that do not have to be changed must also be stated in the command (with the existing values).
Example 1
Initiate the following categories for route 1:
Parameter TYPE:
The route shall consist of ISDN/SL60. lines.
Parameter VARI:
Signal diagram for incoming traffic:
ETSI protocol.
Support UUS service 1, 2 and 3.
Parameter VARO:
Signal diagram for outgoing traffic:
ETSI protocol.
Network master
Tie line.
Parameter VARC:
Signal diagram for incoming and outgoing traffic:
Automatic line test, TIMELINETEST3.
Board programmed for long line.
Guarded clear type of release at loop start.
CLI Support as FSK, ETSI.
RODAI:ROU=1,TYPE=TL1,VARI=00000002,VARO=0000000E, VARC=00033210; |
EXECUTED |
Example 2
Initiate the following categories for route 2:
Parameter TYPE:
The route shall consist of ISDN/SL60 lines.
Parameter VARI:
Signal diagram for incoming traffic:
Type of channel numbering is 1-15 and 17-31.
Code UUI in GFP not supported
Support GFP
Support UUS service 1,2 and 3.
ISO-QSIG protocol selected.
DSS1 network side not supported
Incoming divleg2 information ON
Parameter VARO:
Signal diagram for outgoing traffic:
ETSI/ISO protocol
Connected number IE in CONNECT message
UUI IE in ALERTING message
Non-fix connection between B-channel and external line
Priority for layer 1. Slave
Priority for layer 2. Terminal
Priority for layer 1. User Tie line
Parameter VARC:
Signal diagram for incoming and outgoing traffic:
Permit forward switching
Send ringing tone to co-operating exchange
Overlap receiving
Full ISDN functionality
Type of signaling system, ISDN
Type of interface, 30B+D
RODAI:ROU=2,TYPE=SL60,VARI=15440000,VARO=06400000, VARC=01000310; |
EXECUTED |
Command Category
Dangerous = No
